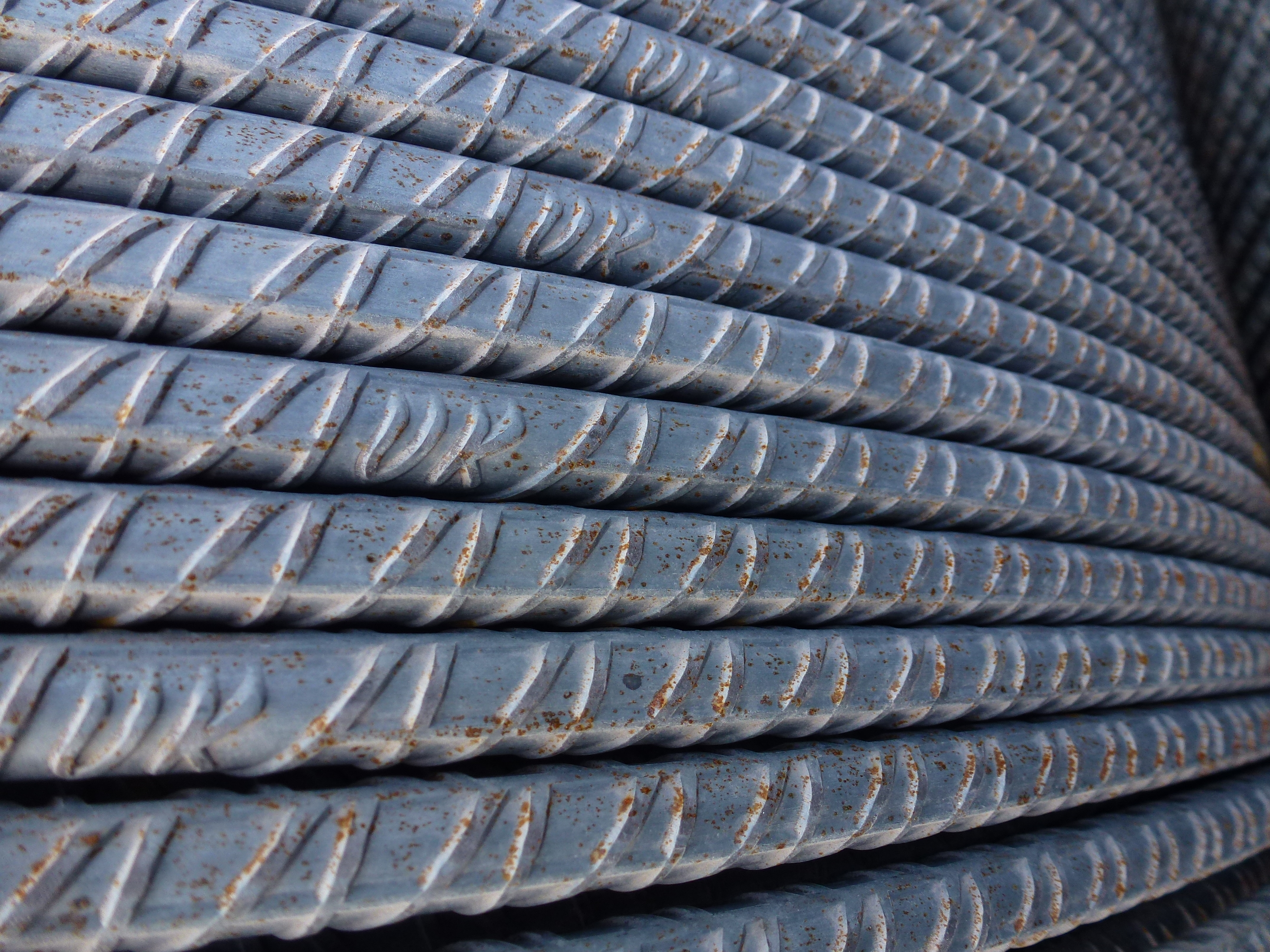

High yield reinforcing bar to BS4449:2005 in diameters 10-40mm. 50mm is a non preferred size, available to special order.
98% recycled content, UK sourced material.
All BRC reinforcement is CARES approved
All cut and bent reinforcement conforms to BS 8666:2005
| Size (mm) | 10 | 12 | 16 | 20 | 25 | 32 | 40 |
| Dims (max O/A mm) | 12 | 14 | 19 | 23 | 29 | 37 | 46 |
| Mass (kg per m) | 0.617 | 0.888 | 1.58 | 2.47 | 3.85 | 6.31 | 9.86 |
| Metres per tonnne | 1623 | 1126 | 633 | 405 | 259 | 158 | 101 |
Reinforcement to be formed to a radius exceeding that specified in the table below shall be supplied straight. The required curvature may be obtained during placing. For shapes with straight and curved lengths (e.g. shape codes 13 and 33) the largest practical radius for the production of a continuous curve is 200mm, and for larger radii the curve may be produced by a series of short straight sections.
| Size (mm) | 10 | 12 | 16 | 20 | 25 | 32 | 40 |
| Radius | 3.50 | 4.25 | 7.50 | 14.00 | 30.00 | 43.00 | 58.00 |
The tolerances for cutting and/or bending dimensions shall be in accordance with the table below and shall be taken into account when completing the schedule.
| Cutting and Bending Tolerances (mm) | ||
|
Straight lengths |
+25 -25 | |
|
Bending
|
<1000mm | +5 -5 |
| >1000mm to <2000mm | +5 -10 | |
| >2000mm | +5 -25 | |
